YCS-103 Three-Phase Power Source for Energy Meter Testing

Nombre De La Marca:	GENY
Número De Modelo:	YCSS-103 y sus derivados
Cuota De Producción:	1
Precio:	negotiate rates
Condiciones De Pago:	T/T, L/C, D/P, T/T
Capacidad De Suministro:	10 piezas/ 1 mes

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

ISO, CE

Documento:

Catalogue——Meter Test S...m..pdf

Precisión de configuración:

Mejor que 0,05% en el valor del intervalo final

Estabilidad:

Mejor que 0,005 %/h (tiempo de integración 150 s）

Factor de distorsión:

Mejor que 0.3% para carga de resistencia lineal

Armónicos:

2o 21o libre programable

Suministro de voltaje:

3×220/380V ± 10% o 50/60Hz ± 2Hz personalizados

Salida de corriente de prueba:

3 × ((1 mA 100A)

Detalles de empaquetado:

Cajas de madera contrachapada

Capacidad de la fuente:

10 piezas/ 1 mes

Resaltar:

three-phase power source for energy meters

stationary power source with warranty

energy meter testing power supply

Descripción de producto

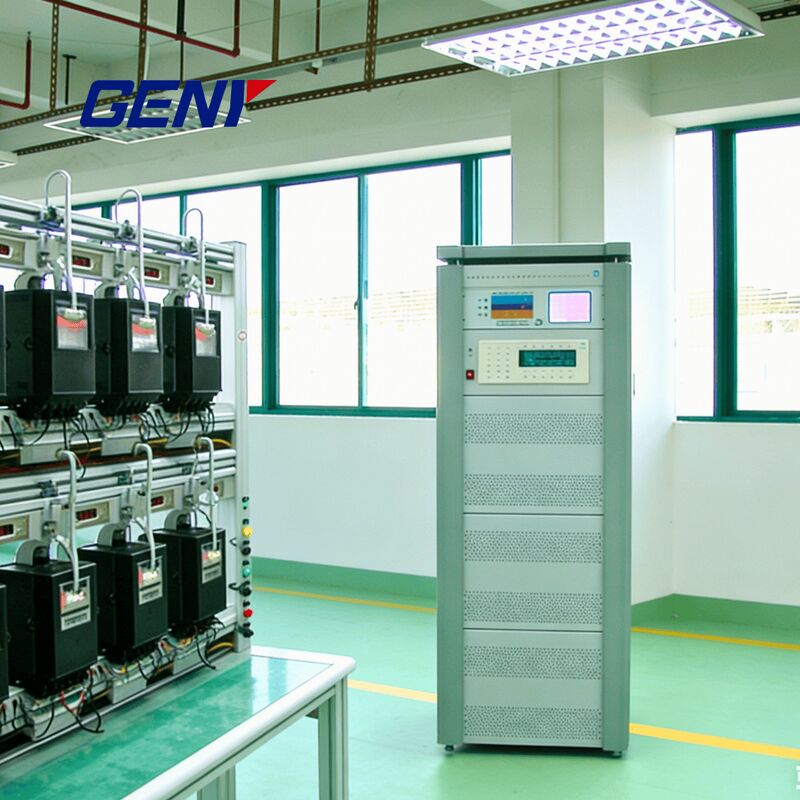

YCS-103 Three-Phase Power Source for Energy Meter Testing

The YCS-103 Three-Phase Power Source is a high-precision, programmable power source designed for energy meter testing and calibration. It provides independent three-phase voltage and current outputs, making it suitable for testing both three-phase and single-phase electricity meters in laboratories, meter production lines, and test benches.

Key Features & Functions

Three independent voltage and current channels for accurate testing of three-phase and single-phase energy meters
High accuracy and long-term output stability ensures reliable and repeatable results for meter verification and calibration
Programmable harmonic output (2nd-41st harmonics) with adjustable harmonic amplitude and phase angle, compliant with modern meter testing standards
RS-232 communication interface enables fully automatic operation and easy integration with meter test bench systems
Optional built-in keyboard supports both manual control and PC-controlled operation
Rugged aluminum alloy housing provides lightweight, corrosion-resistant construction suitable for long-term industrial use
Comprehensive protection design with built-in protection against overload, voltage short-circuit, and current open-circuit
User-friendly control software with simple interface for fast setup, operation, and testing efficiency
CE certified and complies with EU health, safety, and EMC standards
