Equipo de ensayo de contadores estacionarios

0.02% of Accuracy Class Three-phase Meter Test System with ICTs

0.02% of Accuracy Class Three-phase Meter Test System with ICTs

Nombre De La Marca:	GENY
Número De Modelo:	El número de unidades de producción
Cuota De Producción:	1 PCS
Precio:	Negociable
Condiciones De Pago:	L/C, T/T
Capacidad De Suministro:	30 PC por mes

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

PORCELANA

Certificación:

ISO, CE

Voltaje:

3×240±15%

Frecuencia:

50 Hz ±15%

Capacidad de energía:

El valor de las emisiones

Eficiencia energética (a plena carga):

≥ 85%

Temperatura ambiente:

-10 °C -- +40 °C

Humedad relativa:

35% hasta 85%

Detalles de empaquetado:

Caja de madera de la capa

Capacidad de la fuente:

30 PC por mes

Resaltar:

three-phase meter test system

stationary meter test equipment with ICTs

accuracy class meter test system

Descripción de producto

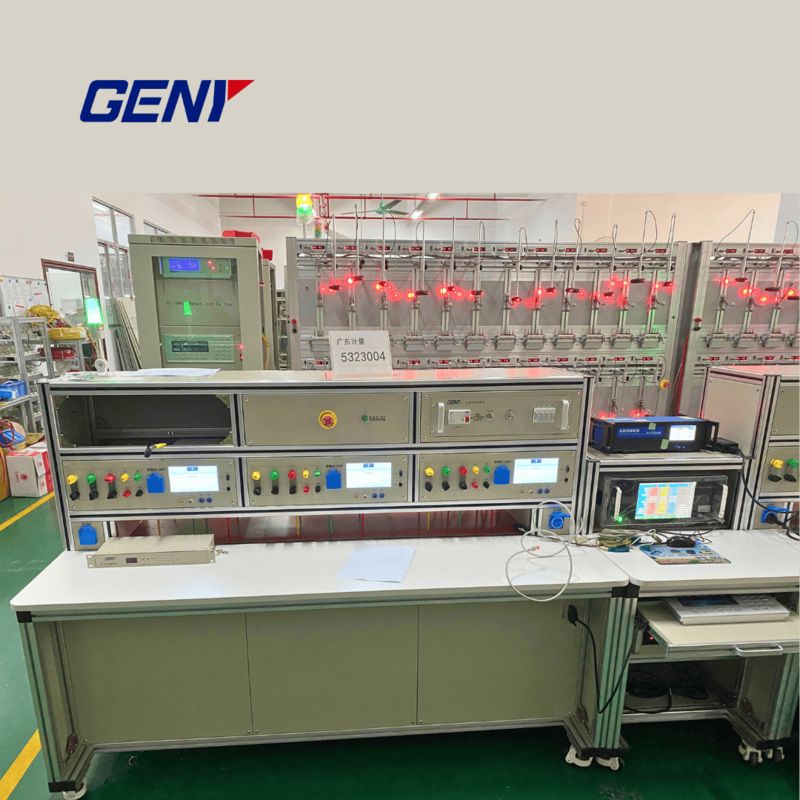

0.02% of Accuracy Class Three-phase Meter Test System with ICTs

Product Specifications

Attribute	Value
Voltage	3×240±15%
Frequency	50 Hz ±15%
Power capacity	> 6 kVA
Power efficient (at full load)	≥85%
Ambient temperature	-10 °C -- +40 °C
Relative humidity	35% -- 85%

Technical Specifications

The test bench is multiple positions up to 3 meters, 0.02% of accuracy class Three-phase Meter Test System with ICTs, with multiple serial port communication system for parallel communication for testing of smart meters.

Power Source

Voltage
Test voltage output (Phase-Neutral)	3×(24 V - 480 V) or 600 V F-F customized
Power of the voltage output	3×100VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.02% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable

Current
Test current output	0.3 mA - 120 A
Power of the current output	3×150VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.02% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable
